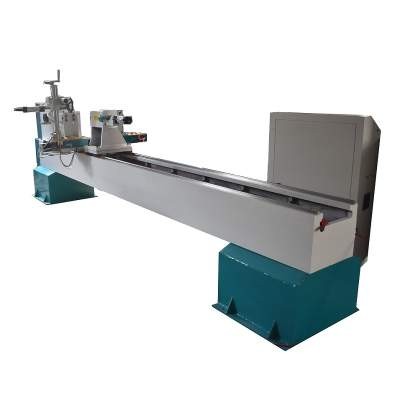

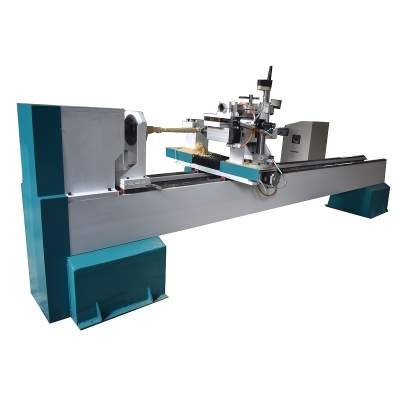

GC1530WL-S wood lathe with spindle
ITMS | Specification |
Processing length(mm) | 1500 |
Max,swing over bed(mm) | 300 |
Power | 80V/50HZ |
Control Systems | A:Full-color 12 -inch screen built- CNC computer or B:DSP handle controller (USB) |
Guides and ball screws | Imported linear square rails and precision ball screw |
Follow rest | Rotary Centre (5CM wooden , 6CM wooden) |
Self-centering | Automatic centering on foot pneumatic feed |
Motor control | 4-pole 380 volt frequency spindle |
Frequency converter | Vector electronic automatic brake inverter |
Tailstock | Pneumatic material clamping top |
Tools | V -shaped steel tool are factory front , welded alloy knife |
Software | Control and easy to use software + basic map file |
Accessory tools | Random tool wrench |
engraver/ Pull trough , pull and twist versatile spindle control section | |
Additional pull trough Universal rotary joint | |
Optional for cnc wood | |
1,160mm four-jaw chuck linkage 2,Woodworking cleaner(Vacuum cleaner) 3,220V constant power variable spindle control 4,Four- exchange station automatic tool changer | |
Features:
1. Cast steel structure ensure machine's stability during high speed peeling and carving work.
2. DSP or PC based control system ,CAD design for programming ,easy to learn and operate.
3. Taiwan Hiwin Square orbits ,high accurate ball screws ensure precisely feeding.
4. High speed stepper motors and pneumatic holding device ,fast speed and easy for loading.
5. Log protection encircle device ,protect operator from harming.
6. 4-5.5Kw 3 phase asynchronous motor give log turning enough power

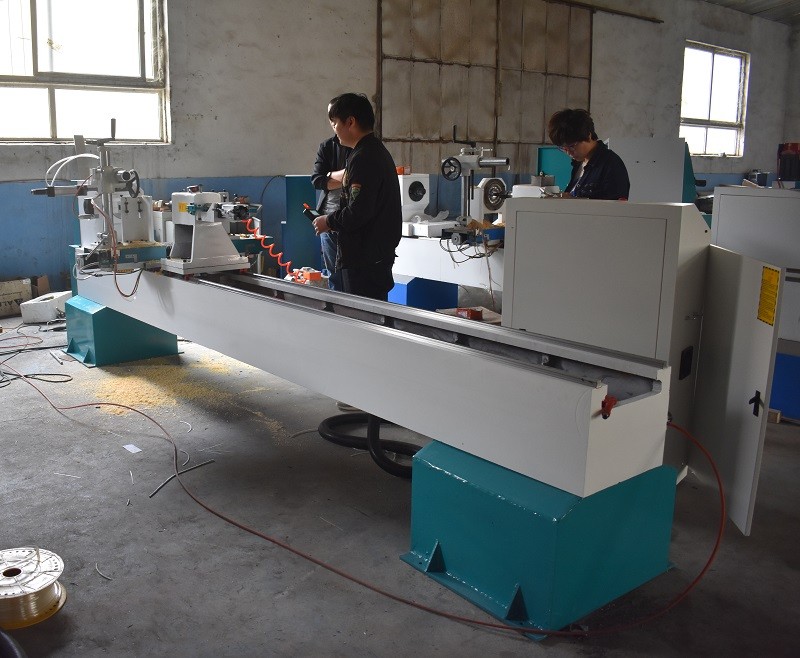

The company's workshop
