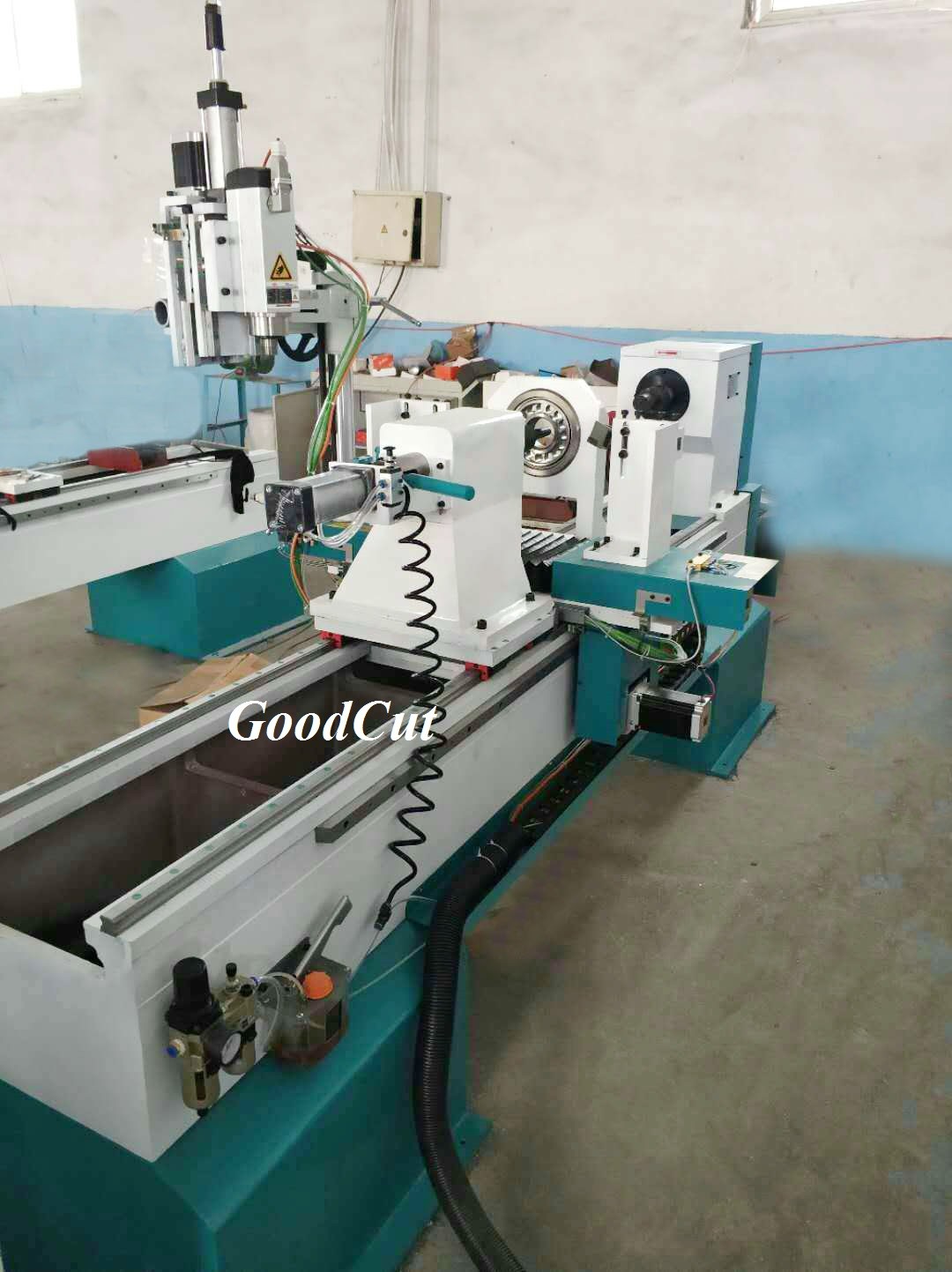

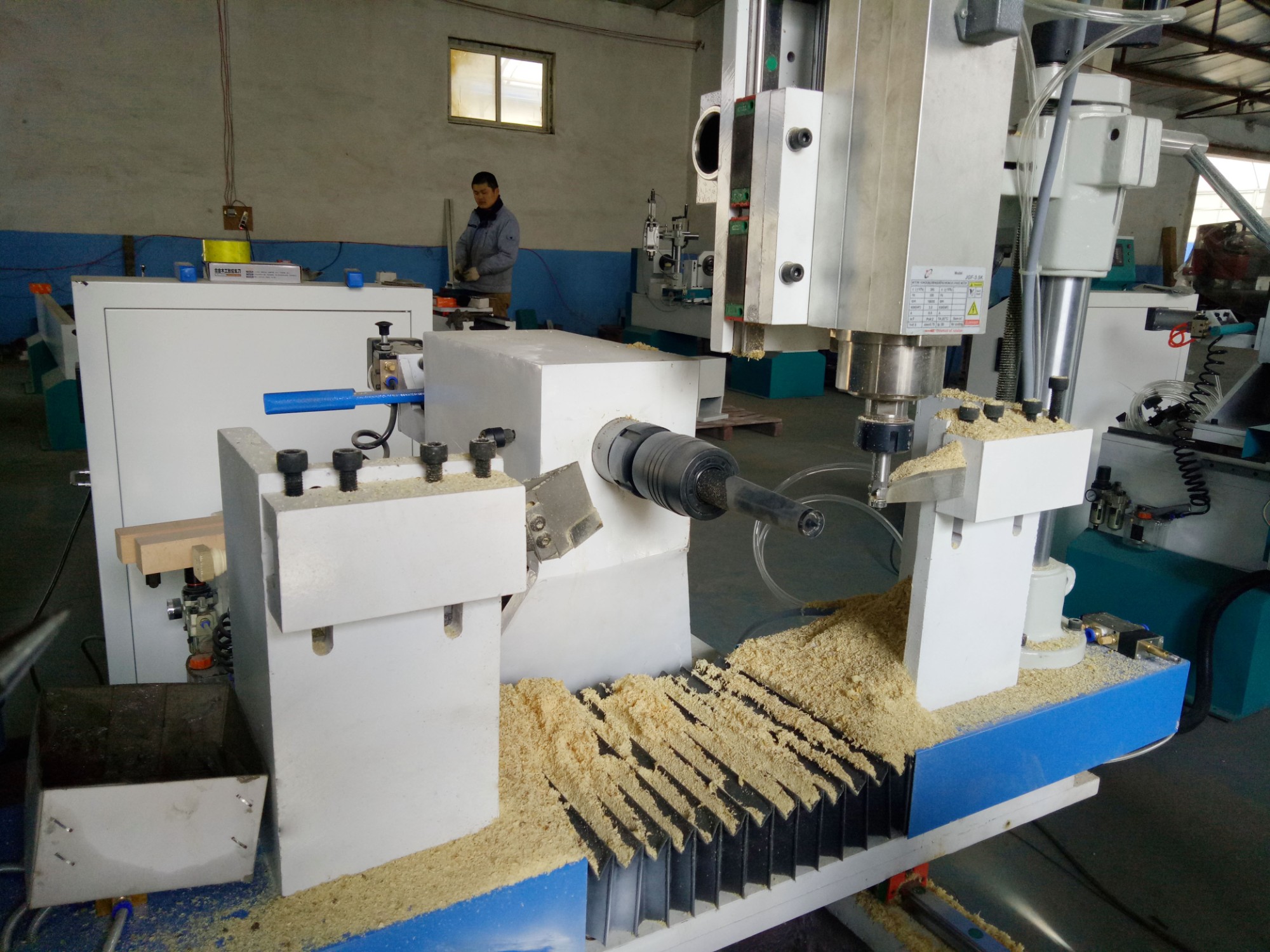

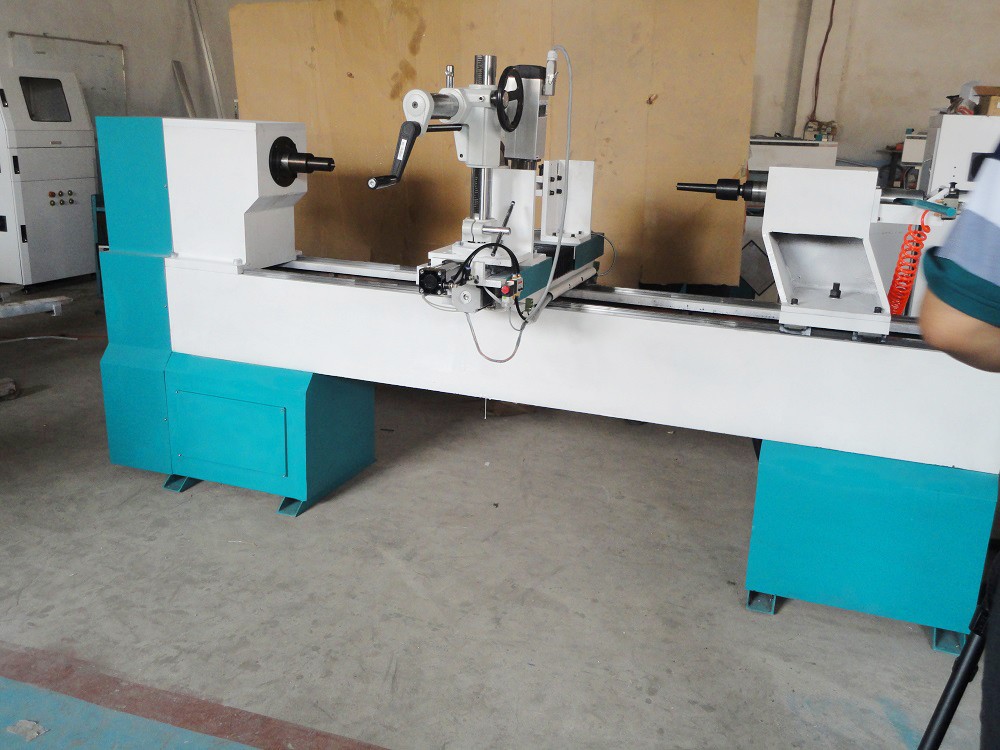

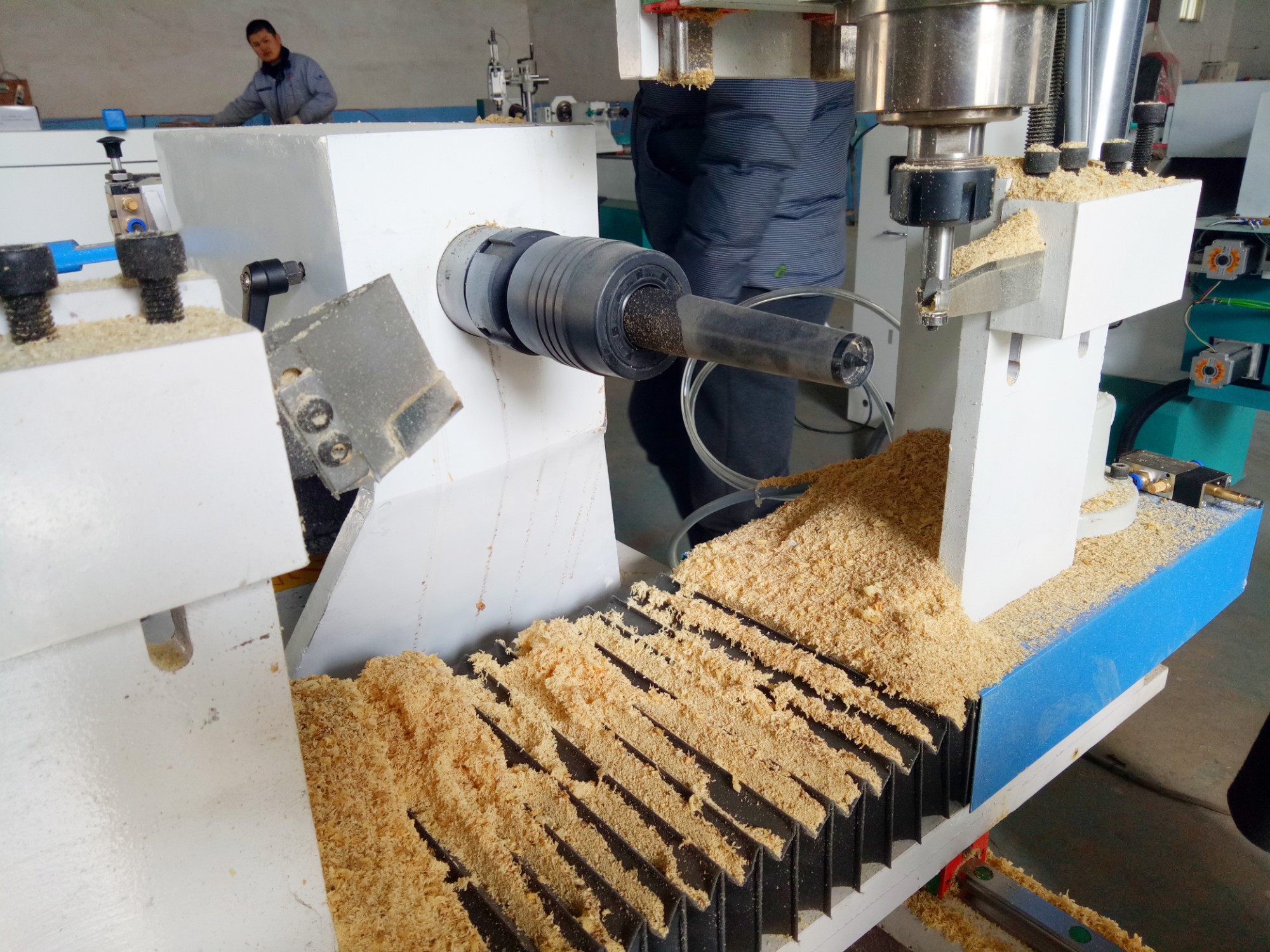

GC1530WL-4 AXIS

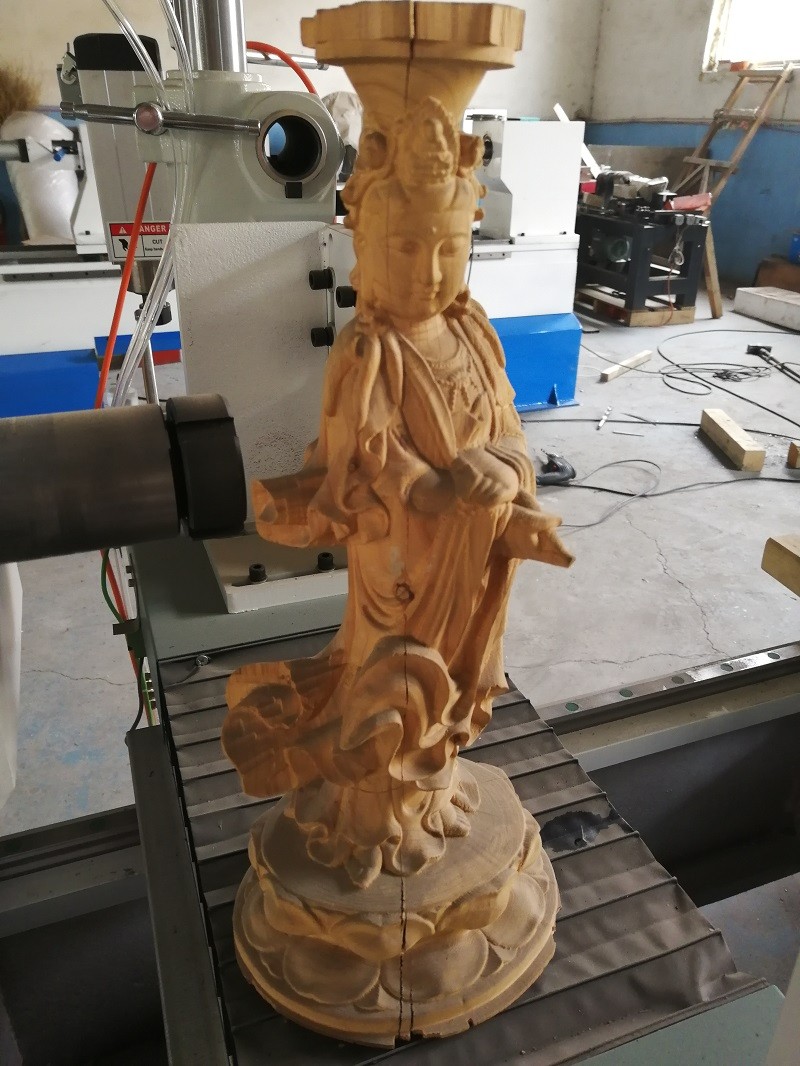

with engraving
1500mm long*300mm diameter
DSP controller
| Model | GC1530WL-4 AXIS |
|---|---|
| Max processing length | 1500mm(can custom 2000/2500/3000mm) |
| Max turning diameter | 300mm |
| Air pressure | 0.6-0.8Mpa |
| Powersupply | AC 380V 3 phase 50HZ/60HZ (can custom 220V) |
| Max feed rate | 2000mm/min |
| min setting unit | 0.01cm |
| Transimission type | ballscrew for X Z axis,gear for Y axis |
| Guider | Taiwan Hiwin orbit |
| Main shaft rotating speed | 0-3000r/min |
| Motor power | 4kw |
| Cutter material | Super hard alloy |
| Control System | DSP control system |
| Motor | Stepper motor |
| Driver | Yako driver |
| Inverter | Best inverter |
| Drawing Software | AutoCAD |
| Interface | Internet cable |
| Hand controller recognise file | *.dxf |
Features:
1. Cast steel structure ensure machine's stability during high speed peeling and carving work.
2. DSP or PC based control system ,CAD design for programming ,easy to learn and operate.
3. Taiwan Hiwin Square orbits ,high accurate ball screws ensure precisely feeding.
4. High speed stepper motors and pneumatic holding device ,fast speed and easy for loading.
5. Log protection encircle device ,protect operator from harming.
6. 4-5.5Kw 3 phase asynchronous motor give log turning enough power

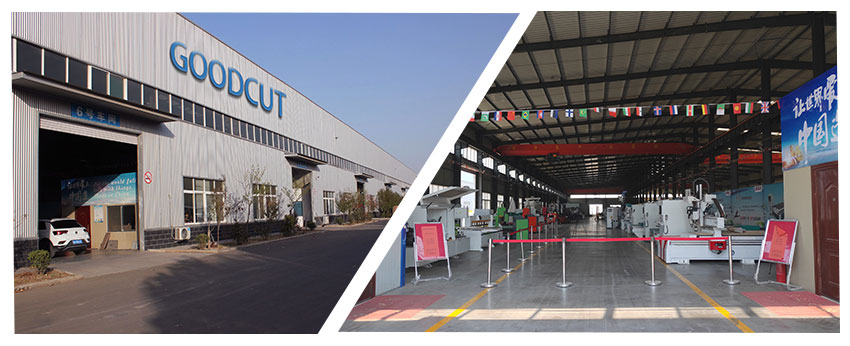

The company's workshop
Packaging and transportation
Customer feedback and our service

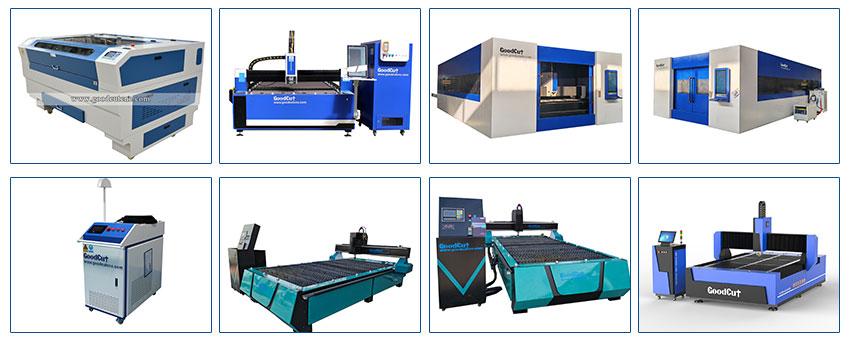

Equipment display
Group photo with our customer
Our qualification certificate
