1300*900 mm working size
Ruida controller
| Product | 1390 laser engraving and cutting machine | ||
| Laser Type | Sealed-off CO2 Laser Tube | ||
| Laser Power | 100w/130w/150w/180w | ||
| Working area | 1300*900 mm | ||
| Engraving speed maximum | 1000mm/s | ||
| Minimum Character | 1mm | ||
| Guideway | Linear Guideway | ||
| Drive Mode | 57 Digital Subdivision Stepper Drive | ||
| Positioning Mode | Red Light | ||
| Cooling Mode | Water Cooling | ||
| Lift table space | 500 mm up and down adjustable | ||
| Direct output | CorelDraw, AutoCAD, Photoshop, Laser CAD, etc... | ||
| Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc | ||
| Power supply | 220V 10% 50HZ / 110V 10% 50HZ | ||
| Standard parts | blower and exhaust pipe, water chiller, air pump, electric lift table, DSP offline control, software, etc. | ||
| Optional part rotary jig | used for carving on curved surface. | ||
| Optional Device | Water-cooling Machine, 360° Simple Rolling Machine, Chuck Rolling Machine, Chuck Non-standard Rolling machine | ||
Features:
High Quality CO2 Laser tube provides the Strong beam and Long service life,perfect wood cutting effect.
Rack and pinion gear transmission, high precision, high speed than belt transmission.
We also have belt transmission machine. Price is lower.

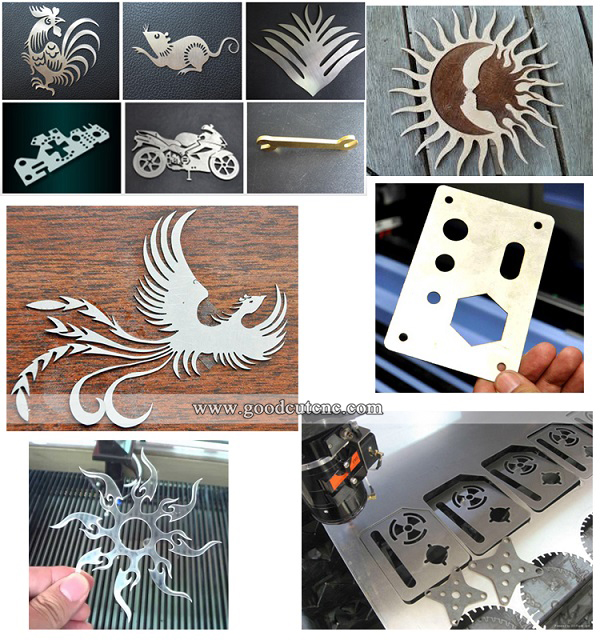

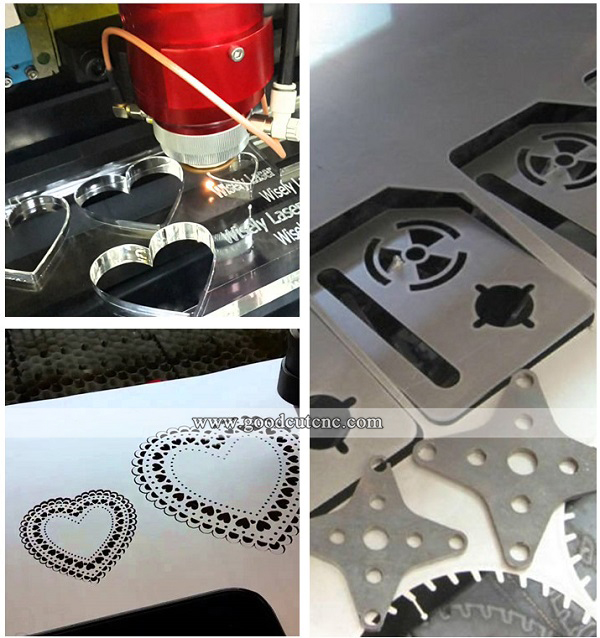

Applicable materials:
wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,towers, glass and metal.
The company's workshop
Packaging and transportation
Customer feedback and our service

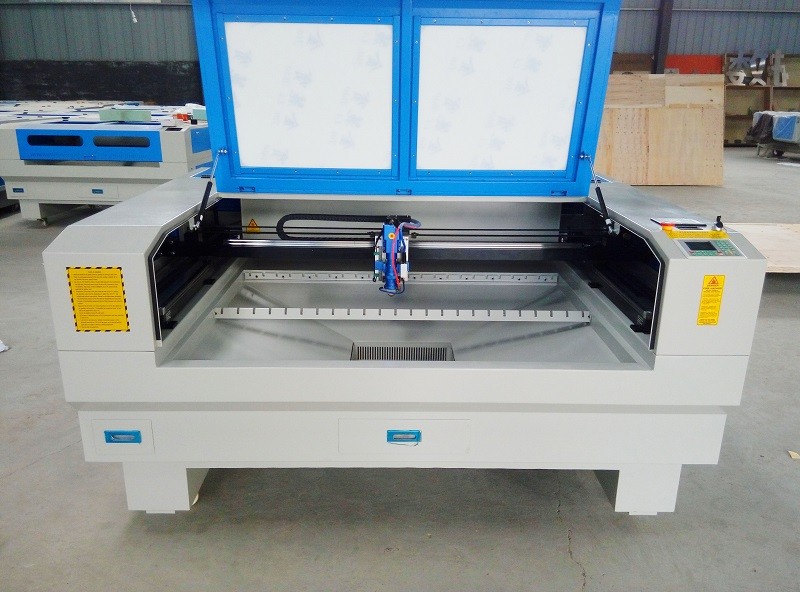

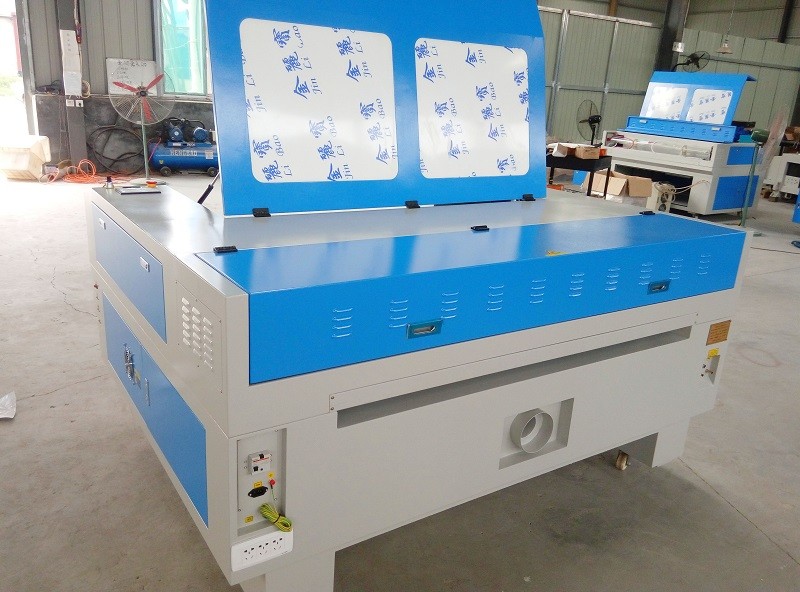

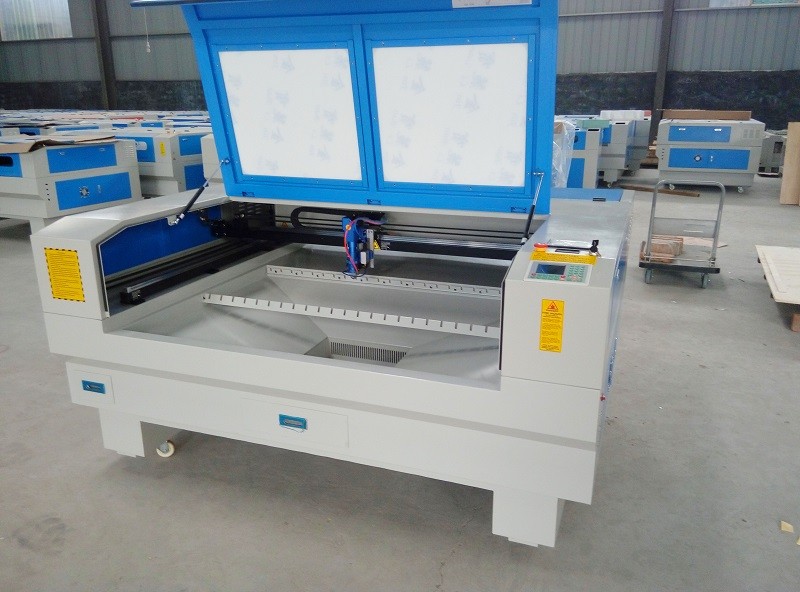

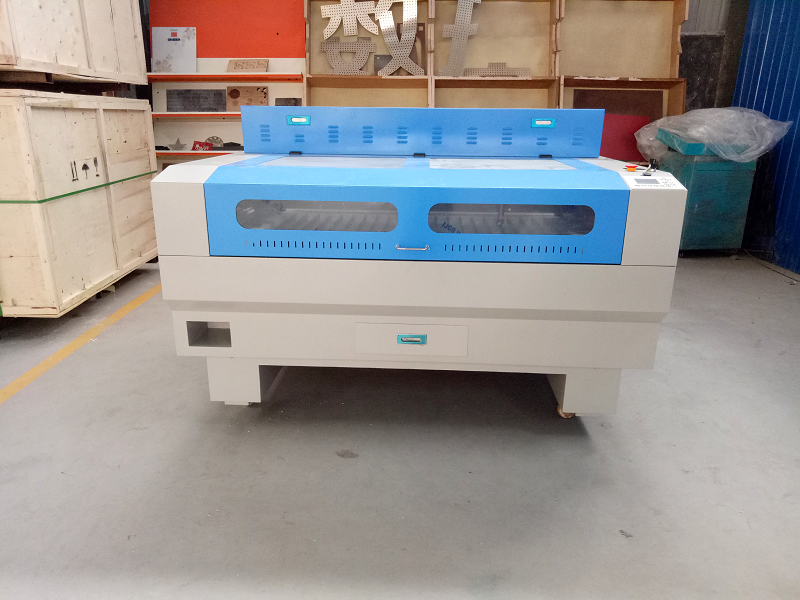

Equipment display
