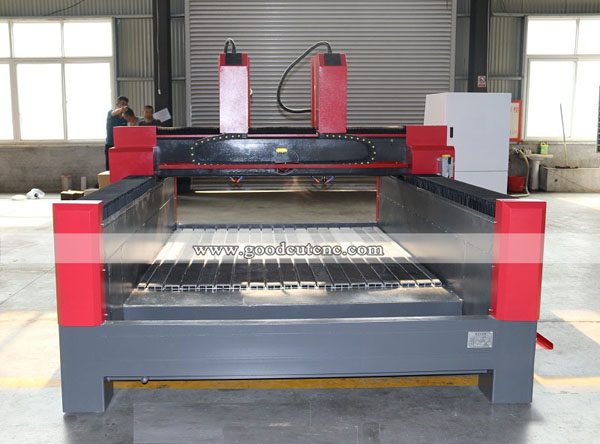

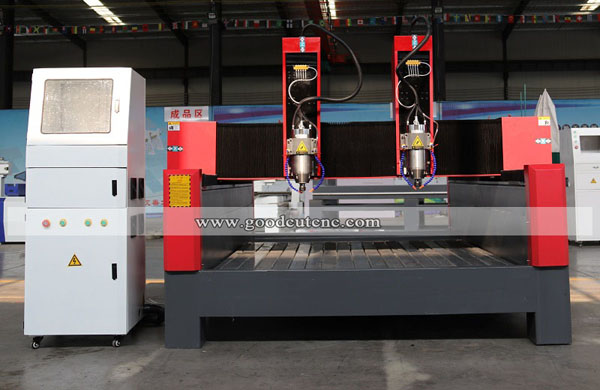

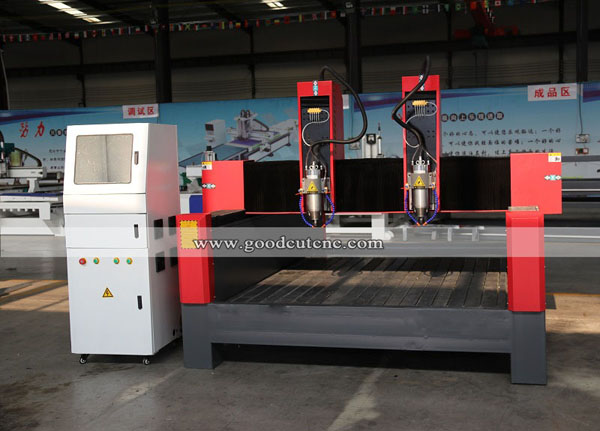

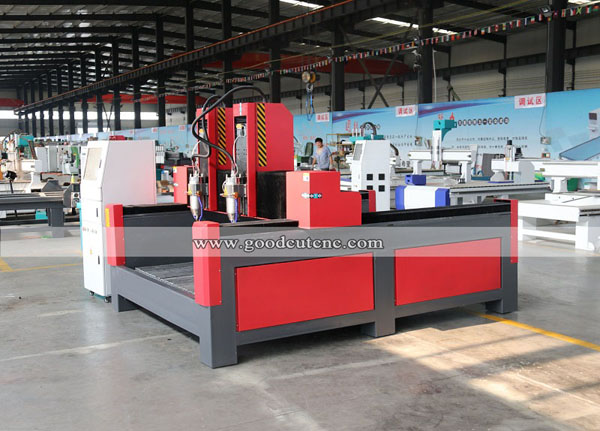

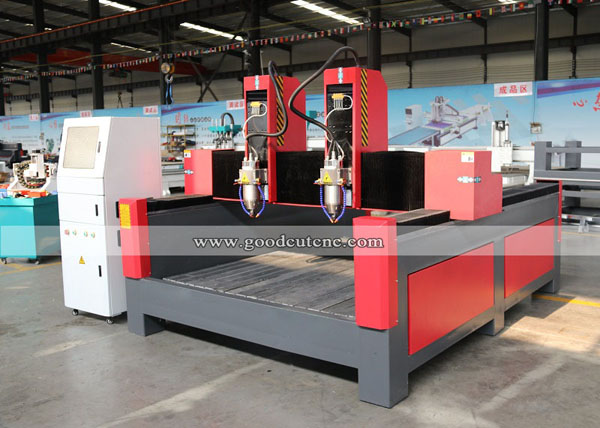

GC1625S-2H 1625 Double Heads Stone CNC Router Machine for Stone Marble Engraving

1600*2500mm working size
5.5kw water cooling spindle
Stepper motor and driver
DSP Controller
Fuling inverter

fEATURES

1. CNC stone engraving machine has a heavy-duty steel table, very durable, and stable, strong enough to hold heavy stone/marble/granite, and engraving or cutting it;

2. Stone engraving machine has CNC kits of a powerful water cooling spindle, perfect working for stone;

3. It has a DSP A11 controller, hand-held, no need connecting to a computer and it is easy to operate; when engraving or carving stone/marble, you'll find it is very convenient, esp for beginners;

4. All parameters and accessories can be customized according to processing requirements, you can choose different CNC kits for this stone engraving machine with the help of our sales manager; CNC Stone engraving machine is a CNC stone router, we also call it CNC marble engraving machine, it is good at engraving works on stone/marble, and is also able to carve or cut stones with different bits;

stone cnc router (1).jpg

PARAMETER

Description	Parameters
Model	GC1625S stone cnc router
Working Area	1300x2500x300mm
Spindle power	5.5 KW
Traveling Positioning Accuracy	±0.03/300mm
Repositioning Accuracy	±0.03mm
Table Surface	Water tank with sprayer pipe
X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
Z Structure	Hiwin Rail Linear Bearings and Ball Screw
Max. Power Consumption (Without spindle)	5.5KW
Max. Rapid Travel Rate	15000mm/min
Max. Working Speed	12000mm/min
Cooling type	Water cooling connect with water pump
Spindle Speed	0-24000RPM
Drive Motors	Stepper motor
Working Voltage	AC380V/50/60Hz,3PH
Computer Interface	USB
Running Environment Temperature	0°C~45°C
Relative humidity	30%~75%
Delivery time	7-10 working day

Machine details:

Controller: DSP, Mach 3, Weihong controller etc.

Guide Rails

HIWIN Guide Rail.

Fast running speed and strong bearing capacity.

APPLICATION

Its major functions include embossing, lettering, hollowing out, cutting, seamless stitching, milling, grinding, etc. So it has wide applications in garden engineering, inscription, stone sculpture, craft, and artwork industries.
