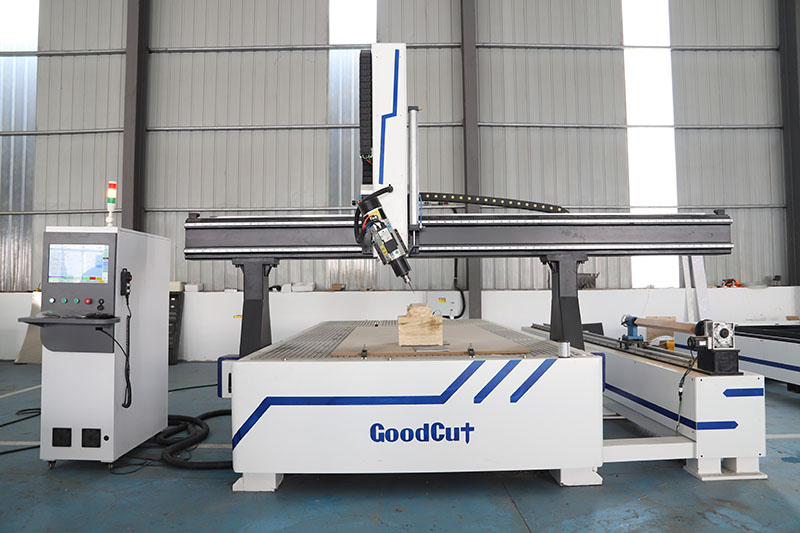

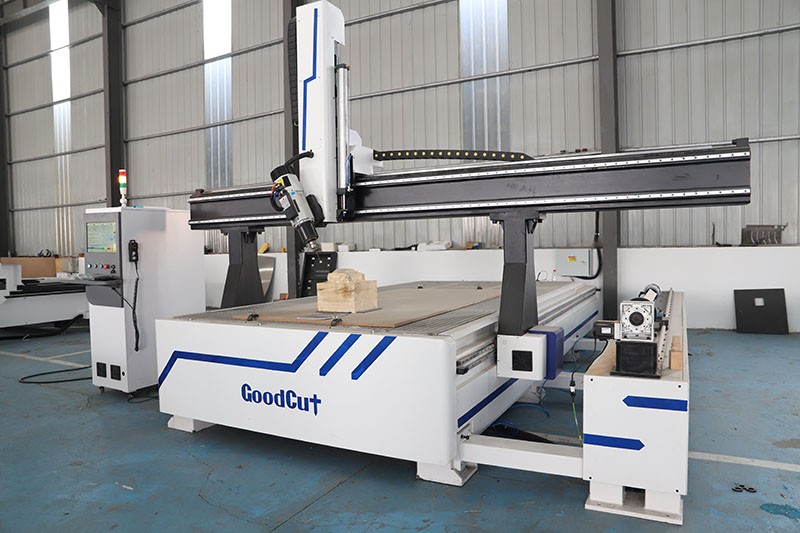

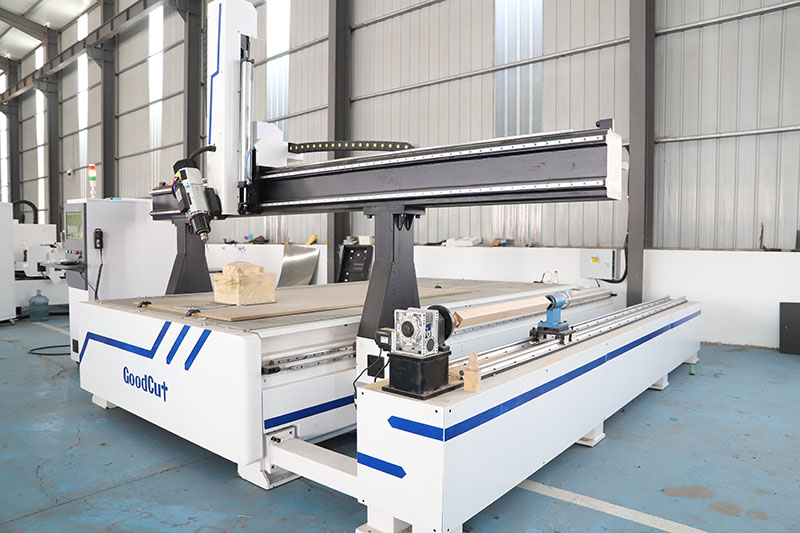

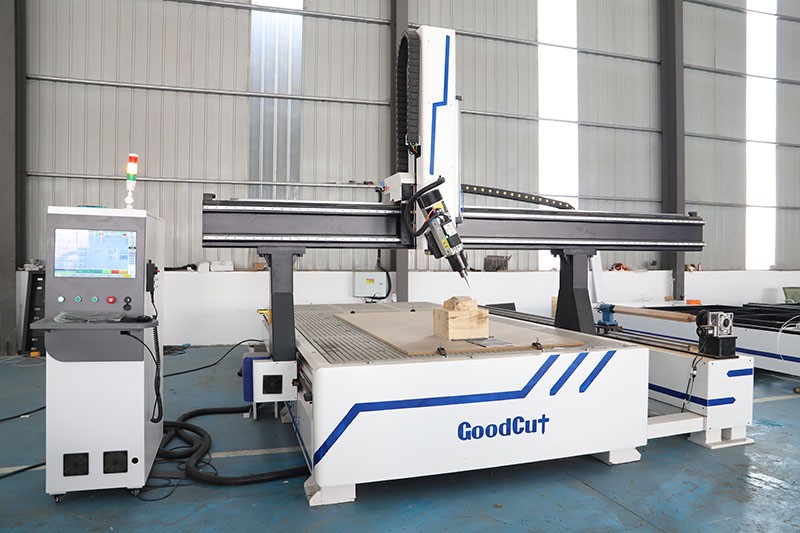

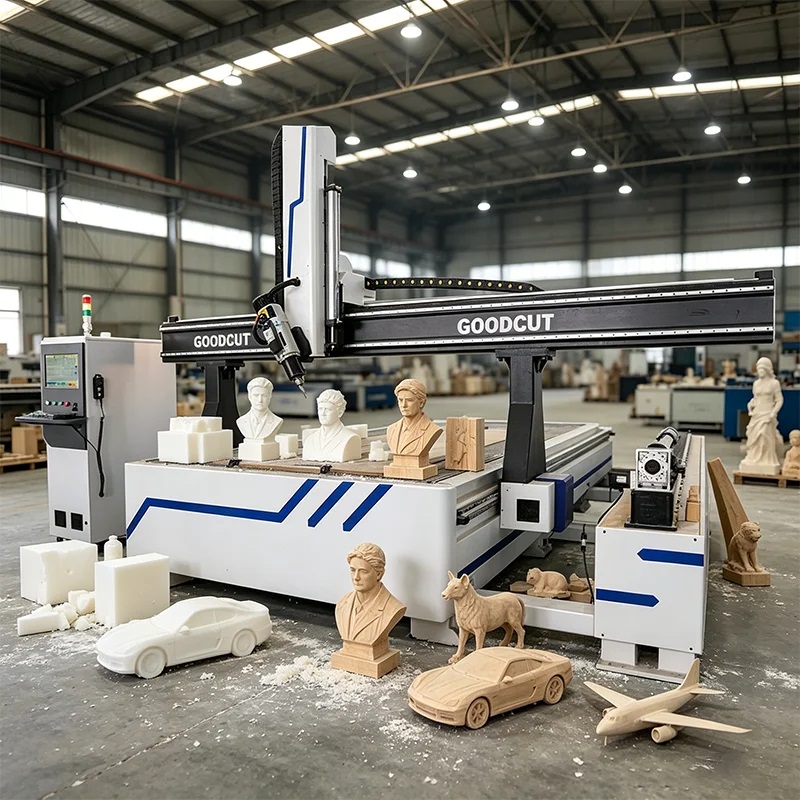

Hot Sale GC2040-4AR Cnc Router Machine Atc with 4 Axis Rotary Axis Swing Head

Hot Sale GC2040-4AR Cnc Router Machine Atc with 4 Axis Rotary Axis Swing Head

12pcs linear tool magazine
Linear Automatic too changer

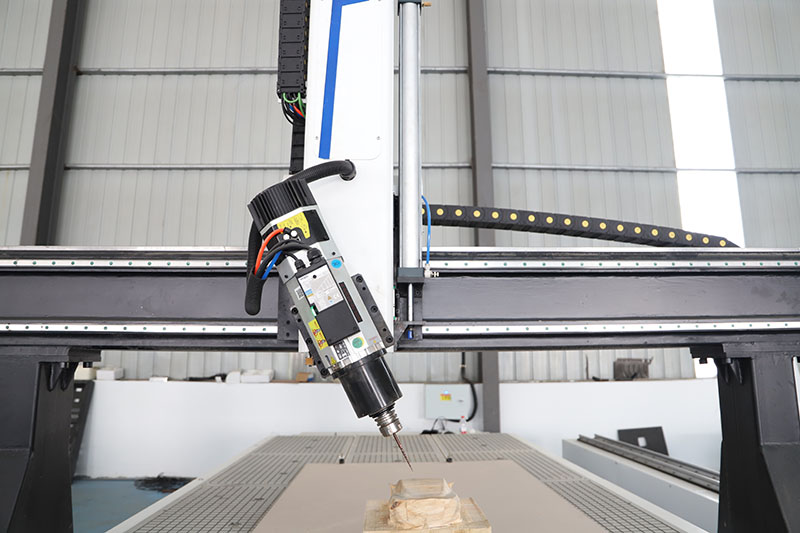

9kw ATC spindle

Parameter :

1	Model Name	GC2040ATC-4AR CNC Router
2	X Y Z working area	20004000400mm
3	Whole structure	Heavy duty frame
4	Table surface	T-slot & Vacuum with vacuum pump
5	Movement parts	X,Y axis by gear, Z axis by Taiwan TBI Ball screw
6	Spindle	HQD 9.0KW air cooling spindle
7	Spindle speed	18000 RPM
8	Drive Motor	Leadshine 1500w servo motor and drivers
9	Max. Rapid Travel Rate	30000 mm/min
10	Max. Working speed	10000mm/min
11	Control System	Weihong NK280 with handwheel// Taiwan LNC/ SYNTEC
12	Software	Type3, Artcam, Ucancam
13	Machine precision	0.01mm
14	Repositioning precision	0.03mm

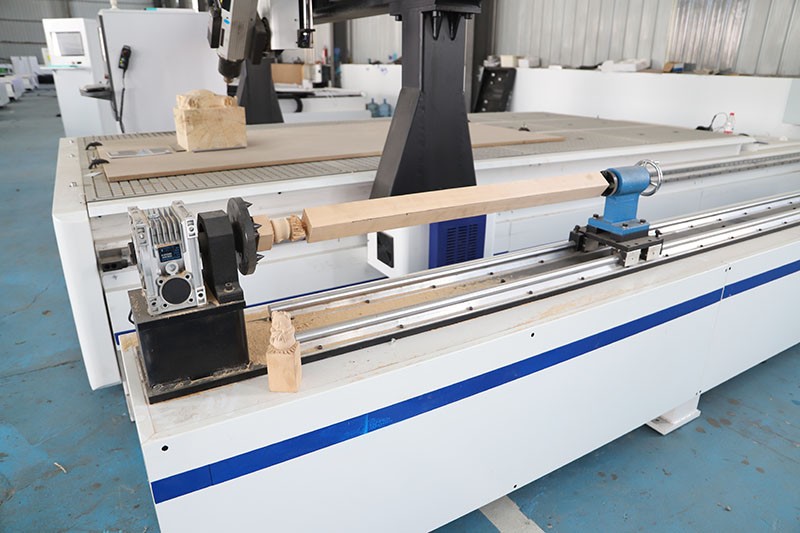

15	Rotary device	220mm rotary device(diameter can be customised)

Features :

HSD or HQD 9KW(12 HP ) high frequency automatic tool changer spindle with 8-12 tool linear magazine

Except the spindle, we use high quality components on this machine like Japanese Yaskawa servo motors and servo drivers, Taiwan Hiwin linear rails and TBI ball screw, Taiwan LNC/ Syntec 6MD control system and so on.

Maintenance free brushless Leadshine 1500W servo motor and driver/ Japan Yaskawa AC servo motors and drives

We also have some optional parts for you to choose: Chinese or Germany Becker vacuum pump, dust collector, mist cooling system, rotary system and so on. Some main parts on the machine can be changed according to your requirements.

Heavy bed body, the bed is treated by the furnace, not easy to deform.

With oil injection system, the drive part of the machine can be effectively lubricated.

Automatic tool calibration pad

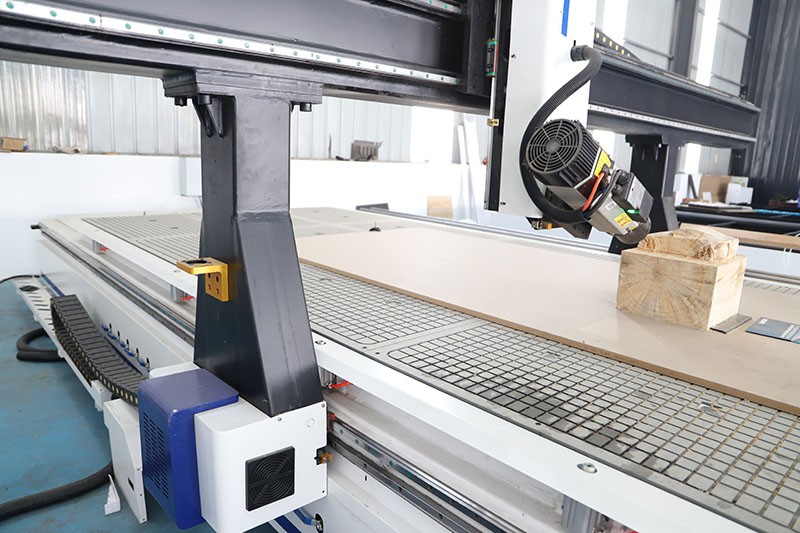

6-zone vacuum table

Pneumatic material placement stops

Syntec industrial AC servo controller

parts

Application:

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
