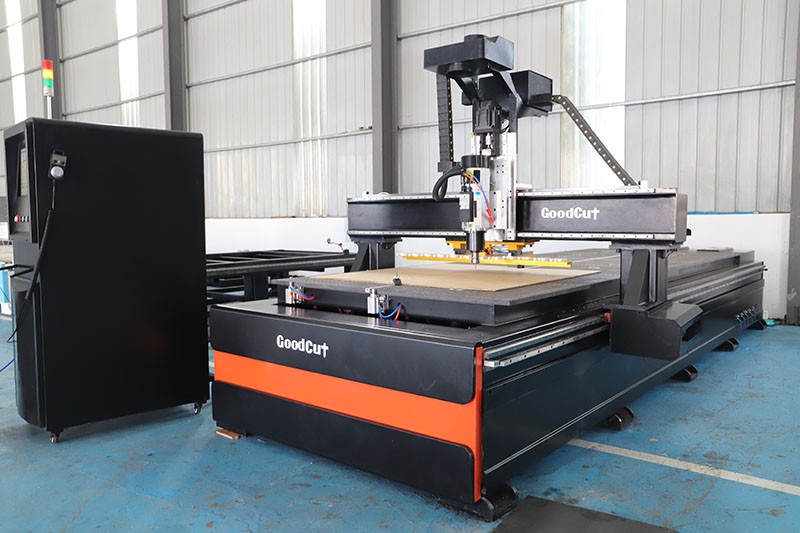

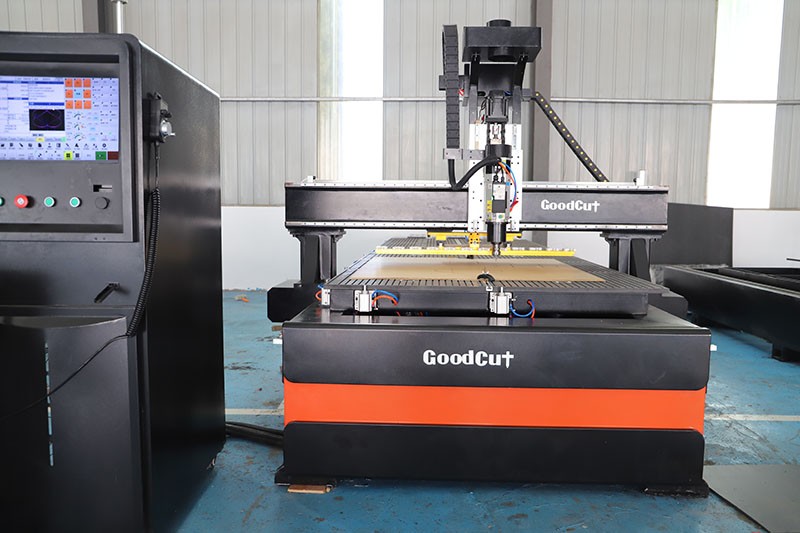

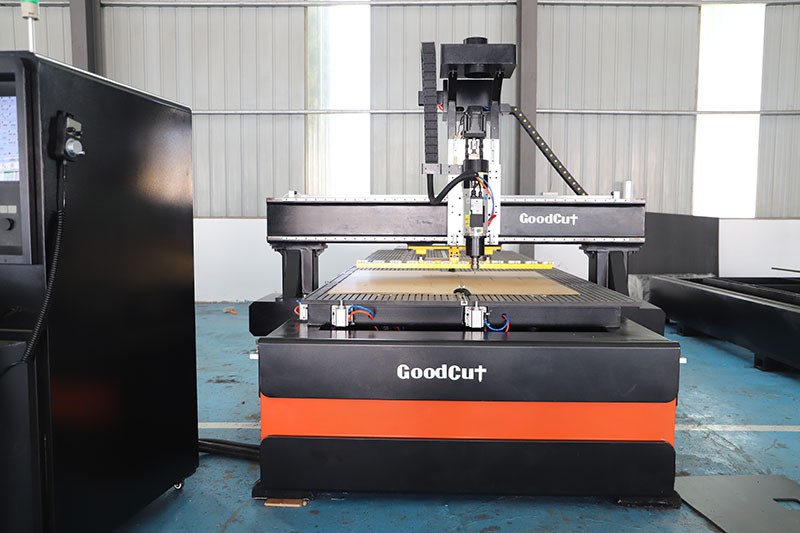

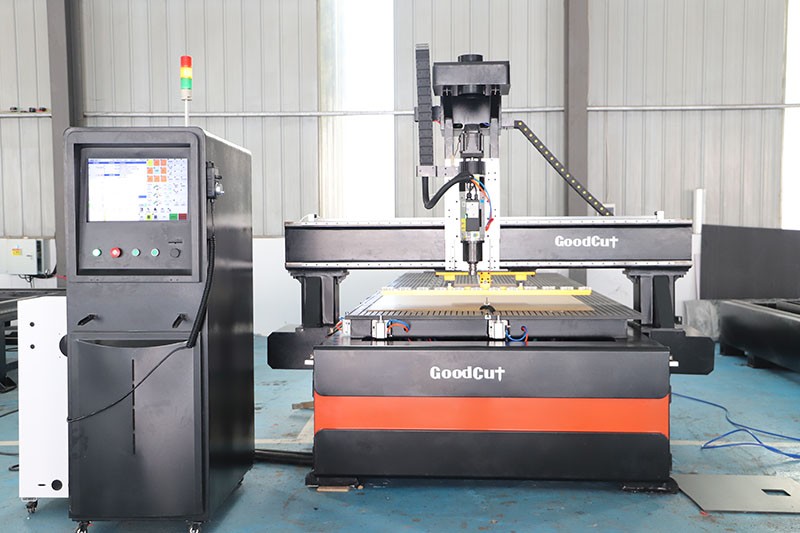

GC1328ATC 4*9feet Automatic Tool Changer CNC Router Machine for Wood

GC1328ATC 4*9feet Automatic Tool Changer CNC Router Machine for Wood

1300*2800mm working size
12pcs linear tool magazine
Linear Automatic too changer
9kw ATC spindle

Parameter :

Description	Parameter
X,Y,Z Working Area	1300x2800x200mm 4*9 feet
Structure	Industrial class square tube strong structure, heavy duty 8-10mm
Working voltage	380v, 3phase, 60HZ (or customized)
Table Surface	Vacuum and T-slot working table, 6 zones;
Spindle	Rotary spindle, 9kw Italy HQD ATC air cooling spindle, Swing -90°to +90°
Spindle speed	0-24000rpm
X, Y Structure	Rack and Pinion Drive, Sweden ABBA #25 Linear Square Rail;Dust cover for Y axis
Z Structure	Sweden ABBA #30 Linear Square Rail and TBI Ball Screw
Motor and driver	850wJapan YASKAWA servo motors and 1kw drivers
Inverter	11kw Fuling inverter
Dust Collector	Dust collector with 2 pockets
Control System	Taiwan SYNTEC /LNC control System with handle
Vacuum pump	5.5kw vacuum pump
Software Compatibility	Artcam Software
Tool sensor	Automatic tool sensor calibration

Features :

1.Adopt domestic 9KW ATC water cooling spindle of large power(Option:Italy 9.0KW HSD air cooling spindle).High accuracy,long service time,steady and smooth movement,and good starting performance,great torque,fulfilling the advantage of working with fast speed and high accuracy.

2.Japan Yaskawa servo motor ensures machine to run with fast speed,low noise,and high position accuracy.

3.Unique Auto Tool Changer system can change tools alternatively,special tool sensor to compensate the tolerance of tool length.

4.Tool magazine standard capacity of 8 tools,(Option:more than 8 tools).Changing tools only takes 8 second

ATC router (21)

This is safe protecting system.

If there is person enter the working machine, machine will alarm.

parts

Application:

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
