GC-PG Gantry Plasma Cutting Machine for Metal Plate And Pipe Tube

2500*12000mm working size
China Huayuan: 63A/100A/120A/160A/200A
US Hypertherm: 45A/65A/85A/105A/125A/200A

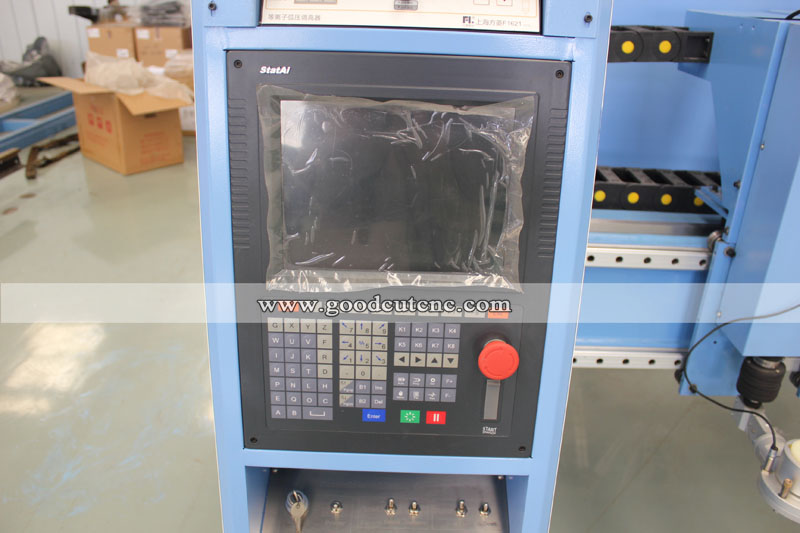

StatAI controller
Rotary axis (optional)
Flame cutting head (optional)

EMAIL

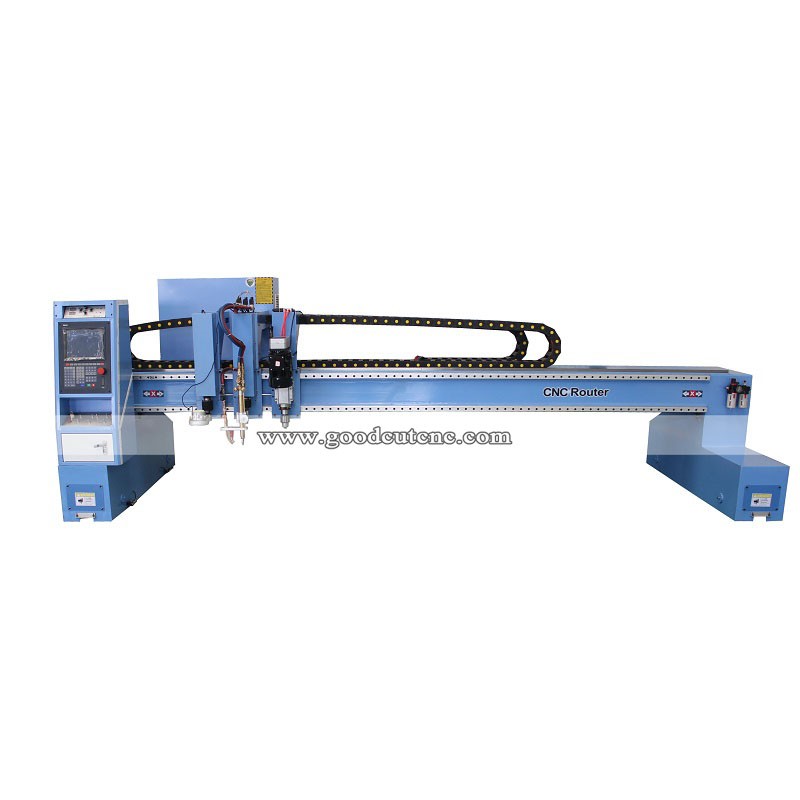

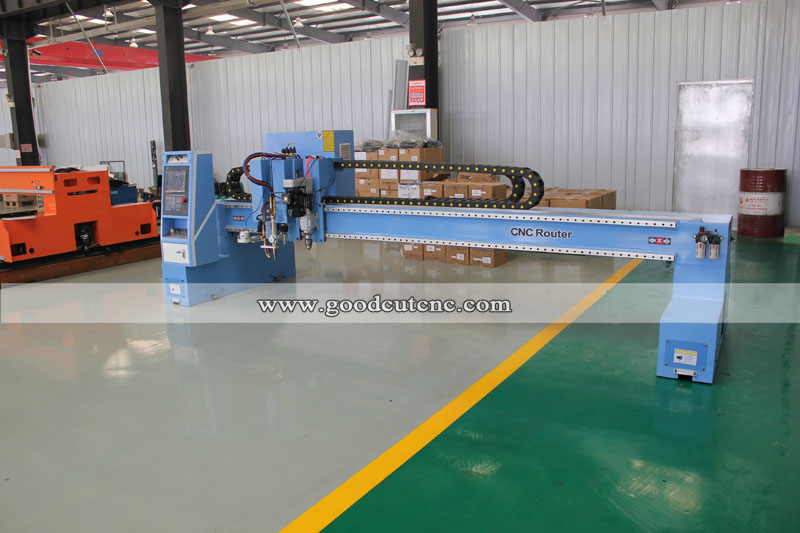

GC-PG Gantry Plasma Cutting Machine for Metal Plate And Pipe Tube

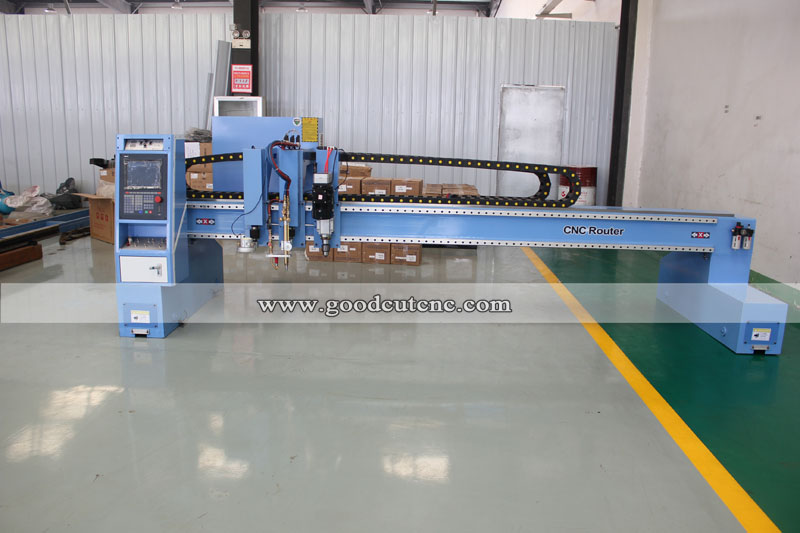

gantry plasma  (4).jpg

Machine type

Cnc plasma/flame/plasma and flame cutting machine

Effective cutting width

2200mm (to-3200mm)

Effective cutting length

12000mm(can be extended)

Cutting model

Plasma/flame/(plasma and flame)

Cutting material

Carbon steel/mild steel/stainless steel/aluminum plates

CNC controller

Fangling F2300,  Beijing Start,Beijing Starfire SF2200,

Drive motors

Stepper (or servo)

Transmission style

Rack and gear

Drive style

Dual stepper (or servo)

Moving precision

0.01mm/step

Flame cutting thickness

6-200mm

Plasma cutting thickness

According to plasma power source

Flame cutting speed

0-4000mm/min

Plasma cutting speed

0-6500mm/min

Programming software

Smartnest, Fastcam, (TurboNEST)

THC

Flame(electric THC); Plasma(arc voltage automatic THC)

Longitudinal rail

T model rail (or 24KG Grade)

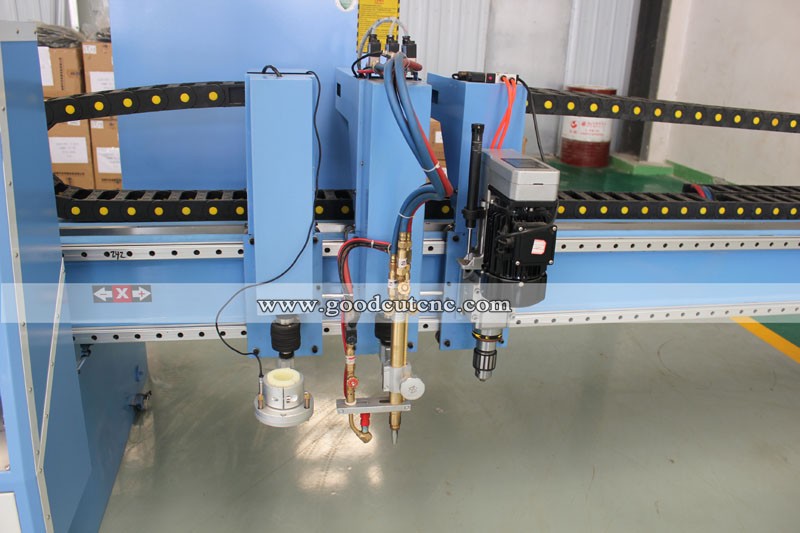

gantry plasma  (10).jpg

Features:

1). The beam uses light structural design,with good rigidity structure, light deadweight and small movement inertia.
2). The gantry structure, Y axis used dual-motor dual-driven system, X, Y, Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.
3). Aiming at cutting three dimension LED character, trough metal panels and floor cutting,the accuracy can reach good indicators.Equipped with other advertise equipment (blister machine, engraving machine), forming the advertising word processing pipeline.Completely solve the traditional manual processing methods.Improve the efficiency of several times.
4). Cutting mouth is small, tidy,and avoid a second dressing processing.
5). It can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates, metal plates and so on.
6). High cutting speed, high precision, and low cost.
7). The numerical control system disposes high, the automatic striking arc, the performance is stable.
8). Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document, also can change software to read AUTOCAD softwares produce DXF form documents.

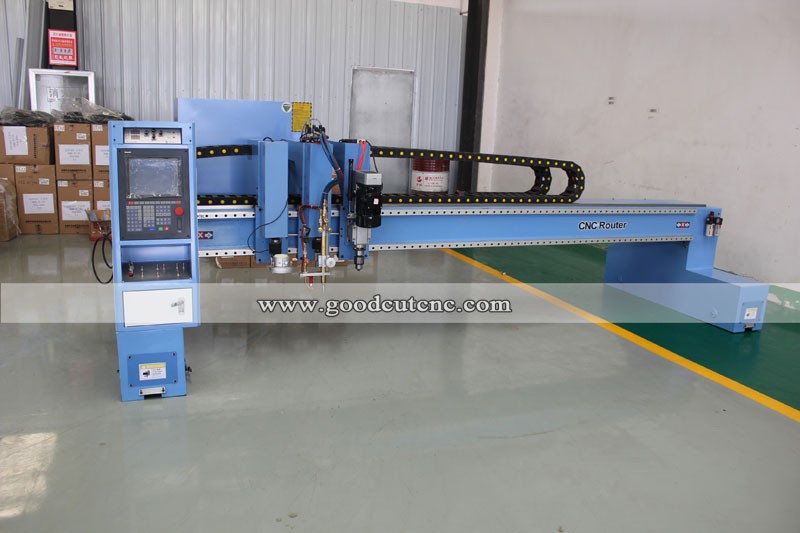

gantry plasma  (2).jpg

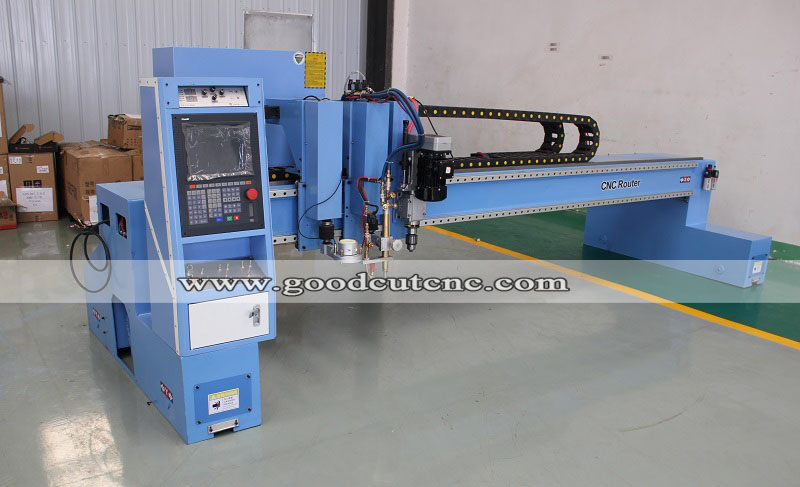

gantry plasma  (7).jpg

China Huayuan: 63A/100A/120A/160A/200A

US Hypertherm: 45A/65A/85A/105A/125A/200A

photobank (44).jpg



Material: This kind of cnc plasma cutting machine is widely applied in special-shaped carbon steel, manganese steel, stainless steel, non-ferrous metals (stainless steel, aluminum, copper, titanium, nickel) and other metal materials of large, medium and small plates.

Application field: This kind of cnc plasma cutting machine is widely applied in shipbuilding industry, heavy machinery, petrochemical, power equipment, boiler manufacturing, machinery manufacturing, aerospace, vehicle manufacturing.

photobank (13).jpg

1 (2).jpg
