Education: primary, middle and high school, K12 education, training on 3D design
Design & Art: high quality 3D design, 3D printing applications, reverse engineering, etc
Digital Industry: animation, CG, VR & AR
Archiving and Sharing: 3D digital archiving, data sharing

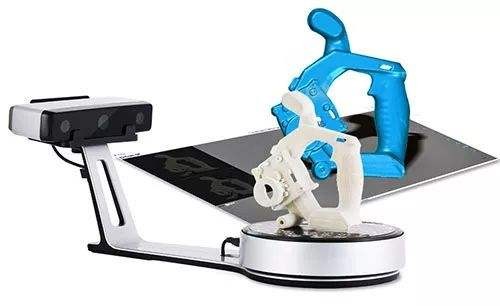

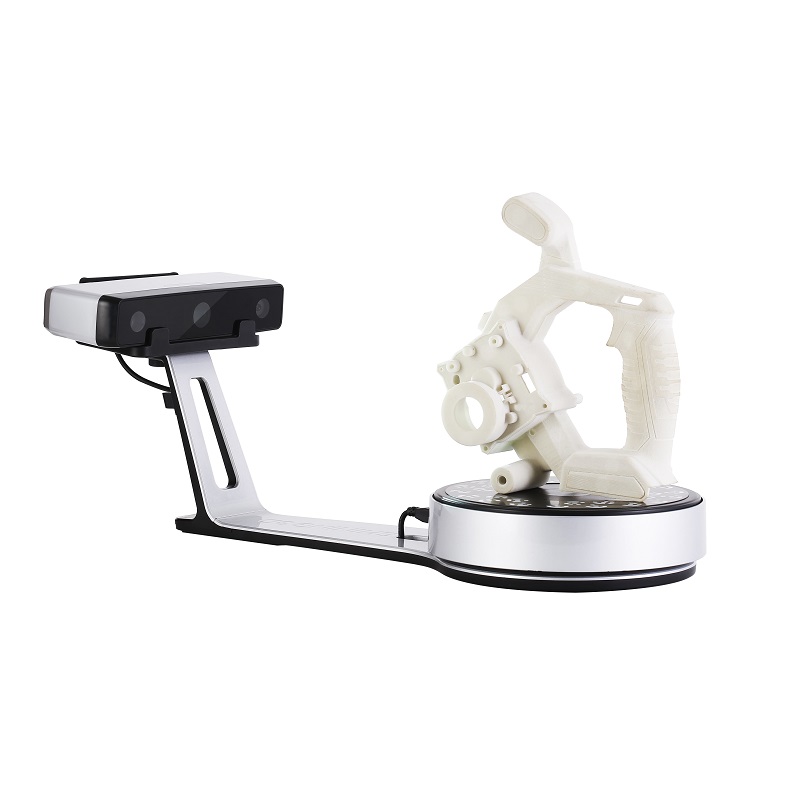

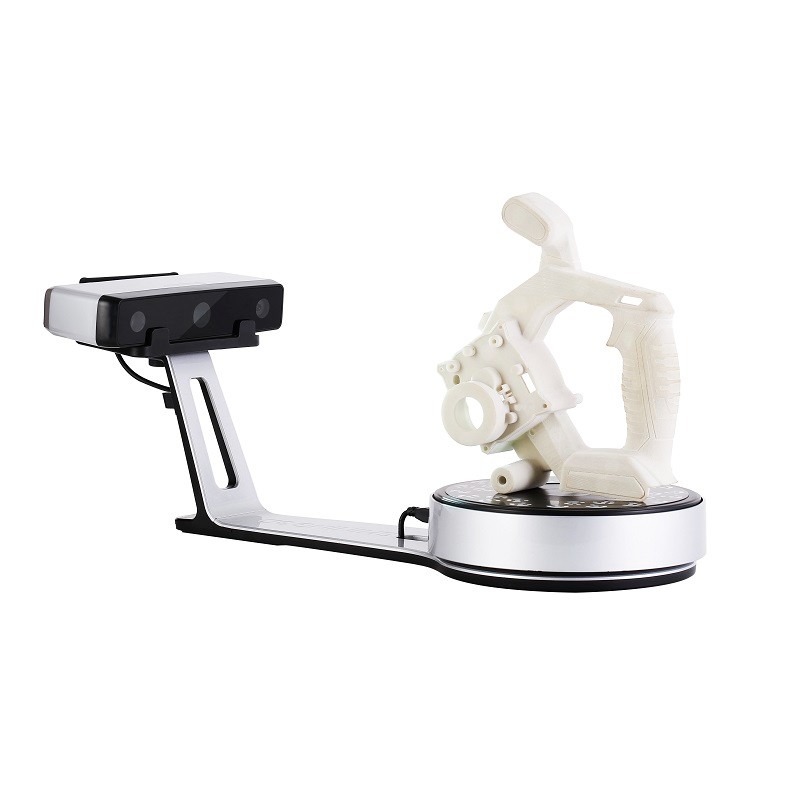

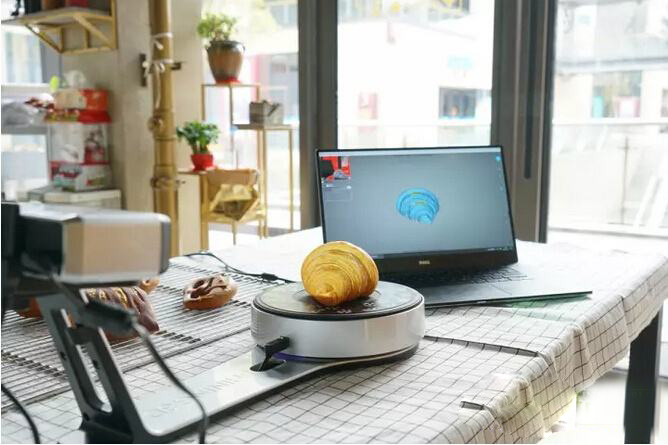

Einscan SP V2 desktop 3D scanner for scan Toys and shoes
| Product number | EinScan-SP V2 |
| Scan mode | Turntable scan |
| measurement accuracy | Single-frame scanning accuracy ≤0.05 mm |
| Measuring range | Turntable scan: 200 * 200 * 200mm fixed scan: 1200 x 1200 x 1200 mm |
| Scan speed | Turntable scan: <1min |
| Dot pitch | 0.17 mm ~ 0.2 mm |
| Stitching mode | Scanning of turntable: automatic stitching of turntable / stitching of stitching / turning of stitching of turntable |
| Resolution | 1.3 million pixels |
| light source | White light |
| Minimum scanning object size | 30 x 30 x 30 mm |
| equipment weight | Before packaging: 4.2 kg |
| power supply | 50w |
| Input voltage | DC: 12 v, 3.33 A |
| Equipment size | 570 × 210 × 210mm |
| Data output format | OBJ, STL, ASC, PLY |
| Shooting distance | 290 ~ 480 mm |
| Texture scan | stand by |
| Turntable | Landmark turntable |
| Calibration board | High-precision calibration board |
| Turntable bearing | 5 kg |
| System Support | win7, win8, win10, 64-bit |
| Recommended computer requirements | Graphics: Independent graphics, Nvidia GTX 660 or higher, video memory> 2 G; CPU: dual-core I5 or higher; memory> 16G; data interface: at least one USB 2.0 / 3.0 interface; |
Fast: Efficient locking, simple operation
Simple mini integrated body, refreshing cable management, can realize plug and play; touch switch to achieve one-key on, effectively reduce the number of repeated calibration, improve scanning efficiency. Single frame scan time only 8S; EinScan-SE scans only 2 minutes per week in the fully automatic scan mode of the turntable
High-definition: each is high-quality data
The device adopts the grating structured light mode and performs 3D data scanning, which can truly restore the geometric information of the object surface.

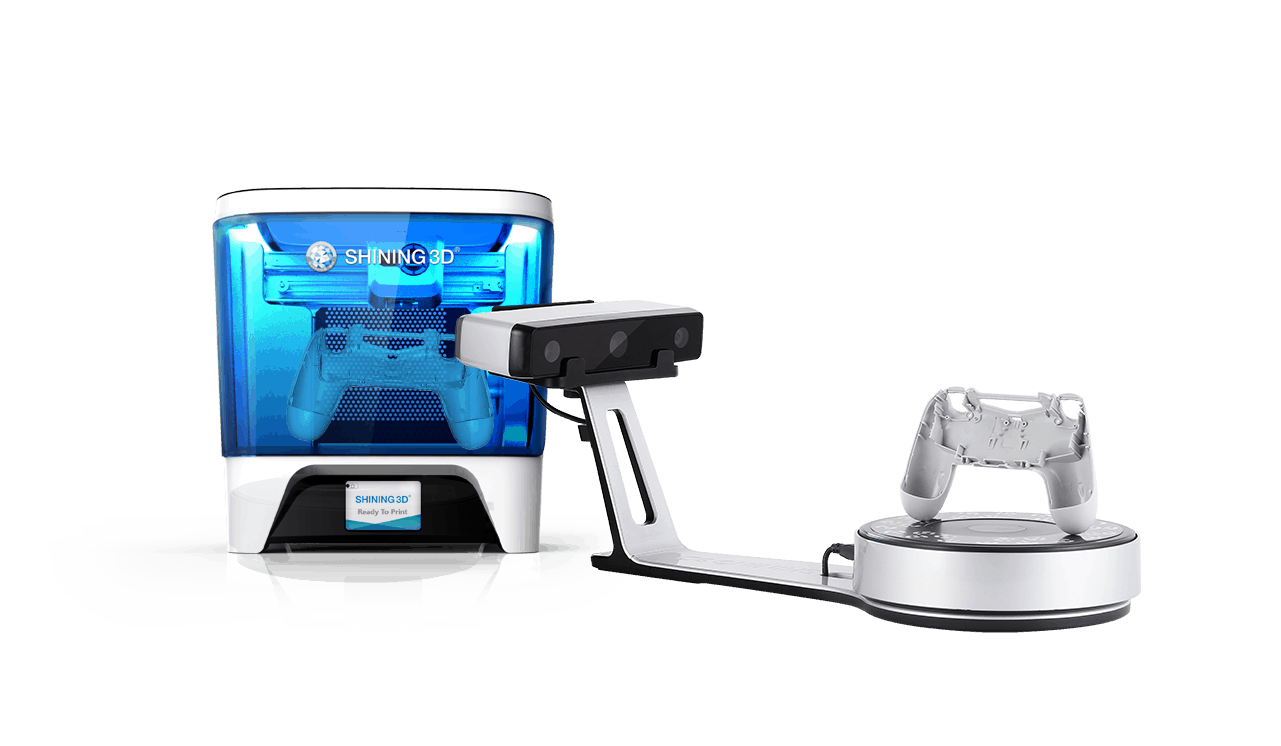

Open format: Seamless docking with 3D printers
The software can automatically generate a closed model and import it into a 3D printer for direct printing. API access service for third-party brand printers
Data sharing, one-click upload, fast cloud storage sharing
Support third-party data platform access services; in order to facilitate domestic and foreign customers to truly realize data sharing in the cloud, software integration with the Sketchfab data network disk and domestic 3D data platform (www.3dzao.cn) has been successfully created to directly create personal accounts and Scan data archiving and sharing
The company's workshop
Packaging and transportation
Customer feedback and our service

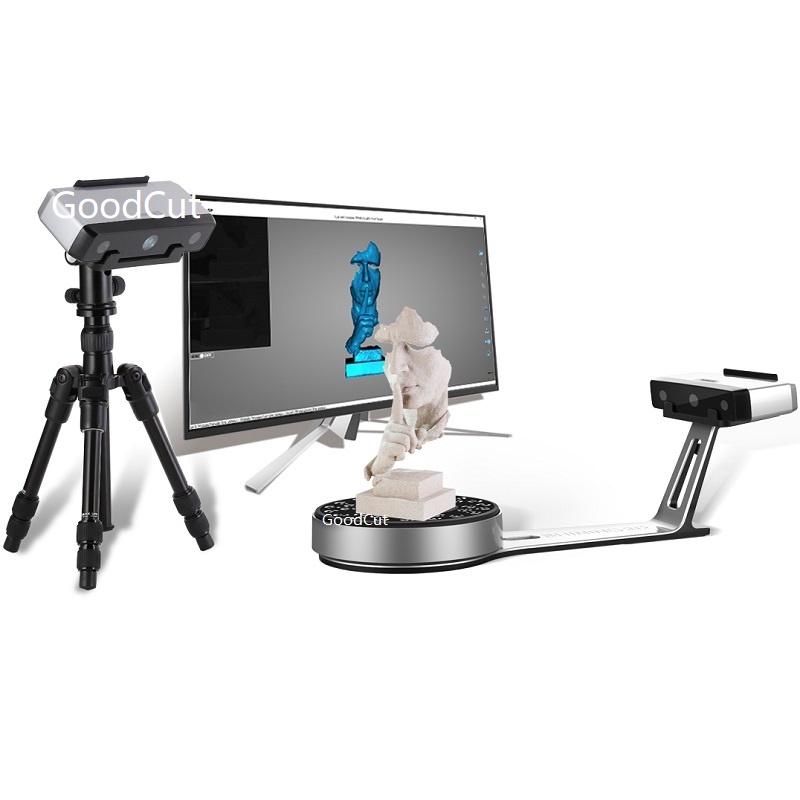

Equipment display
Group photo with our customer
Our qualification certificate
